100 ohm - 150 ohm Ethernet Impedance Balun / Converter


	Impedance converters (baluns)

	100 ohm - 150 ohm Ethernet Impedance Balun / Converter

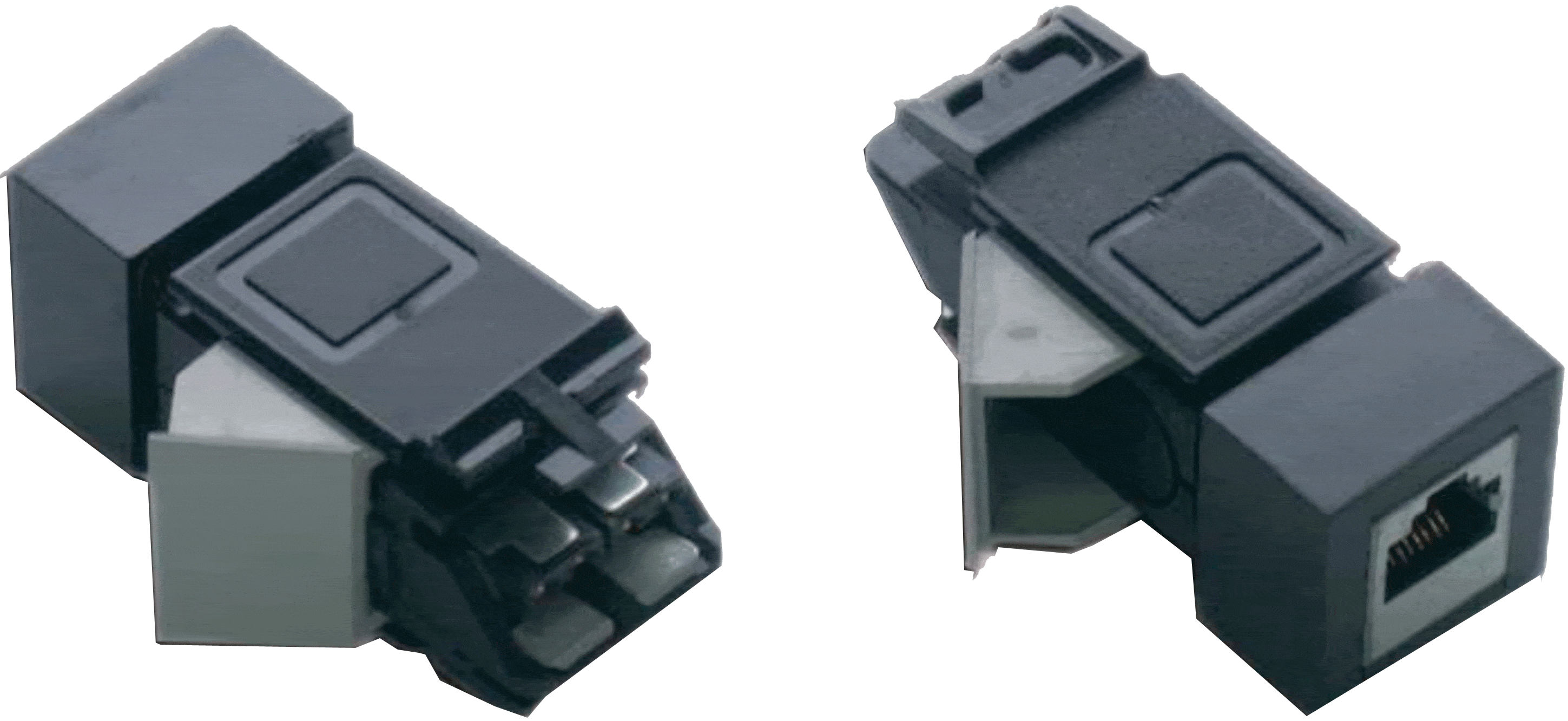

	AN-EIC Impedance Matching Device converters Type 1 (Token-Ring cable) 10Base-T(UTP)/100Base-TX(STP) cabling on jack in position at pin 1,2,3,6. Matches Impedance from 150 ohm to 100 ohm, conforms to IEEE 802.3 10Base-T/IEEE802.3u 10Base-TX Application.

AN-EIC Impedance Matching Device converters Type 1 (Token-Ring cable) 10Base-T(UTP)/100Base-TX(STP) cabling on jack in position at pin 1,2,3,6. Matches Impedance from 150 ohm to 100 ohm, conforms to IEEE 802.3 10Base-T/IEEE802.3u 10Base-TX Application.

Interface: Data connector,RJ45
RJ45 Signal: Active in pin 1,2 3,6

Impedance:
150 ohm Data connector side.
100 ohm RJ45 side.

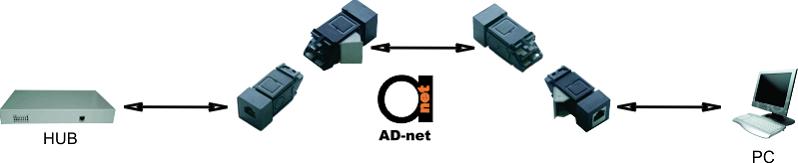

Application scenario:

AN-EIC Request price	Fast Ethernet 100MB Impedance Matching Device Shielded RJ jack
AN-EIC-U Request price	Ethernet 10 MB Impendance Matching Device Un-shielded RJ jack
