• AN-E1-4(8)RS-485 can realize long-distance monitoring of this end equipment to the far-end equipment (two-row indicator, upper row indicate local status, lower row indicate far-end status);
• RS485 rate support 0~115200Kbps self-adapt
• RS485 support hot-plug, connection to DTE or DCE device;
• 4 or 8 RS-485 interfaces over E1 G.703/G.704
• Rate selection for each RS-485
• E1 can support rate N*64k (N=1 to 32)
• Offers 2 kinds of loop-return function, namely E1 self-looping at local end (ANA) and RS485 self-looping at local end (REM)
• AC220V and DC-48V for option, and DC-48V is  not divided into positive and negative pole with simple installation and maintenance;
• Supports  function of pseudo-random code testing(PATT), which brings great convenience for installation, debugging and maintenance of equipment;
• E1 interface supports 75Ω unbalanced and 120Ω balanced impedance at the same time;
• Realizes SNMP network management function in our chassis installation (check central platform here)

RS485  interface:

Interface character: match RS485
Interface Rate: 0 - 115.2Kbps
Connector: RJ-45
Interface type: DCE or DTE

E1 interface parameter:

• Channel capacity: 1 Channels
• Bit Rate: 2.048 Mb/s ±50 ppm
• Line Code: HDB3
• Line Impedance: 120 Ohm / 75 Ohm
• Connector: RJ-45 or BNC
• Pulse Shape: ITU-T G.703.
• Jitter Performance: ITU-T G.823
• clock: inter-clock, line-clock

  Power:

  • DC: -48V (-36 to -72V); +24 V (Optional)
  • AC: 90 to 260 VAC ; 47 ~ 63Hz
  • Power Interface: DC power terminal/AC socket
  • Power Consumption: 8 W maximum

  Working environment:

  • Operating temperature: 0 to 50 °C
  • Storage temperature: -20; to +70 °C
  • Relative humidity: 5% to 90% (25 °C no condense)

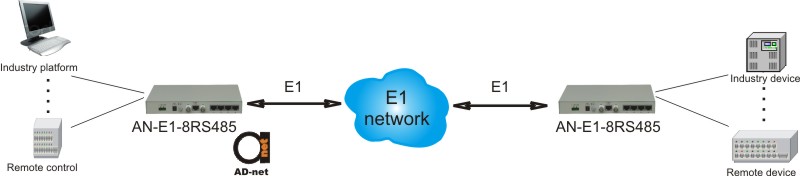

Application scenario:
