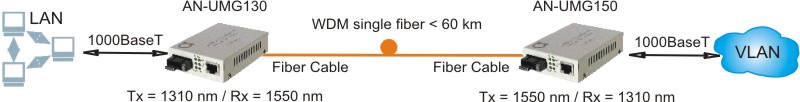

The AN-UMG130/150 series comply with IEEE 802.3z/ab Gigabit Ethernet standard single fiber converter is designed with an optic wavelength Division Multiplexing (WDM technology that transports bi-directional full duplex signal over a single fiber simultaneously. It supports two types of media for network convention such as 1000 Base -T to 1000 Base-SX/LX and connects these of segments to operate smoothly.
AD-net AN-UMG130/150 series provides a unique capability of both transmitting and receiving Gigabit Ethernet data on a single fiber over the distances up to 40 km. This feature is critical for many Fiber-to-the-X (FTTX) environments, where a single fiber is laid to each customer. AD-net single-fiber solutions cover a range of protocols and distances, and include single-fiber WDM for specific applications and protocols, what require stable and reliable optical to ethernet conversion. For Fiber Optical Ethernet applications, AD-net provides SFP modules that directly connect to a bi-directional fiber interface. AD-net also provides a wide variety of specialty patch cables to combine wavelengths and multiplex transmit and receive signals.
AN-UMG130/150 also can be ordered as plug in modules in AN-CH05 chassis, and they also are universal - you can use same units as standalone unit, and also same unit can be used as plug in module in chassis.
AN-UMG130/150 is successfully used in optical-to-electrical-to-optical translation at the very edge of the transport network, thus permitting interoperation with existing equipment with optical interfaces.
AN-UMG130/150 single fiber media converter systems operate on single mode fiber optical cables, which have a core diameter of 9 µm. Certain models of WDM can also be used in multi-mode fiber cables (also known as premises cables) which have core diameters of 50 or 62.5 µm.
