AN-DV-E1 series E1 video coder & decoder, mainly used in long-distance video monitoring, have function of E1 single directional transmitting video signal.

It is ensured that any device with E1 interface, such as PBX, Mobile base station, SS7 signaling device and voice post system, can seamlessly connect to E1 video coder & decoder. Also, E1 video coder & decoder can be applied in E1 based communication system, such as: LAN, WAN. MAN and wireless network.

• Video over E1 transparent transmission;
• Optional 1 inverted data channel of RS485/422/232/Manchester;
• Optional 1 positive directional data channel of 485/422/232/Manchester
• Optional 1 inverted audio channel
• Optional 1 positive directional audio channel
• E1 single directional transmition signal at fractions (N*64K), according with G.703/704
• High transmition efficiency, low transmition delays;
• High quality of video signal, video cameras can be controled by PTZ using RS-232/485 interfaces
• Console port for configuration issues;

E1 interface
Standard: E1 interface compatible with G.703 standard.
Rate: n*64 kbps (n=10-31)
Coding: HDB3
Impedance: 75Ω (unbalance), 120Ω (balance)
Connector:  BNC (75Ω), RJ45 (120Ω)
Jitter Performance: According to G.742 and G.823

Video interface
Format:  PAL/NTSC
Video Signal:  1VP-P
Video Impedance:  75Ω
Bandwidth:  8MHz
Digitization: 8bit
DG: 1% (Typical value)
DP:1˚(Typical value)
SNR: 67dB (Typical value)
Color brightness time extension difference: 10ns (Typical value)
Color brightness gain difference: ±10% (Typical value)
Compression algorithm: H264 (accord with ISO/IEC qua 14496-10 international standard)
Video input: 1 complex TV signal CVBS
Connector: RCA
Sample frequency: 7.27MHz
Data deal format: ITU-R BT.656 YCrCb 4:2:2

Asynchronous data
Interface: RS232/RS485/RS422/ Manchester
Working mode: Full / half duplex
Transmit rate: 300~115.200Kbps
Error code rate: <1×10 ^–9
Data connector: RJ45

Console
Interface: RS232
Working mode: Full/half duplex
Baud rate:  9600
Data bit: 8
Odd & even: none
Stop bit: 1
Data stream control: none
BACKSPACE choice:  ctrl+h, space
Data connecter:   RJ45

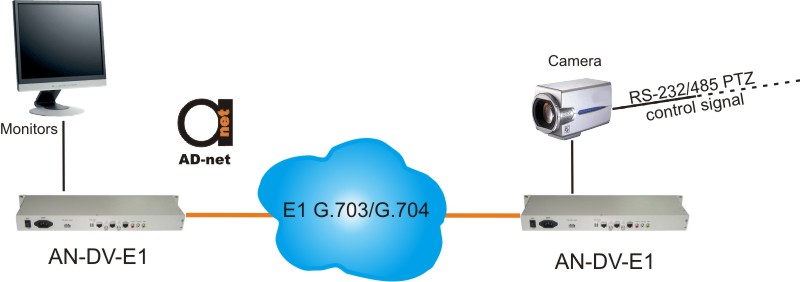

Application:
