Delivering E1 G.703 and PRI services over FTTH/B GEPON networks
FTTx - FTTH & FTTB networks usually are planned and designed by operators purely to have been served for residential customer access - so the ONU - Optical networking units have usually the IP, CATV and 1 or 2 POTS - FXS ports, even not a FXO for connecting the PABX. What about traditional E1?
No, it is NOT dead, and TDM services are still popular, as E1 line is still widely used for PRI - Primary Rate Interface transport to connect a PABX - private branch telecom exchanges.
Some GEPON manufactures were trying and in fact still try to market ONU's with the E1 interface, but they are very expensive, and also lead times can be high, and OLT with several E1 interfaces to be get out at the center are very expensive either. Besides, it is even more uncovienent for the the network service provider to keep ONU's with E1 interface in the stock, and then wait for FTTB customer to appear, to go and install him exlusively the ONU with E1 interface. And what about idea if OLT has 16 E1 ports, and you need connect just 1 customer at this branch? Your price per port for the E1 leased line over the GEPON then in fact goes to sky!
AD-net comes up with a more effective and easy solution now.
So, what's the way to solve it?
By regular, you have triple play, or dual play FTTH network based on AD-net GEPON, and now E1 leased line for PRI PABX application comes up.

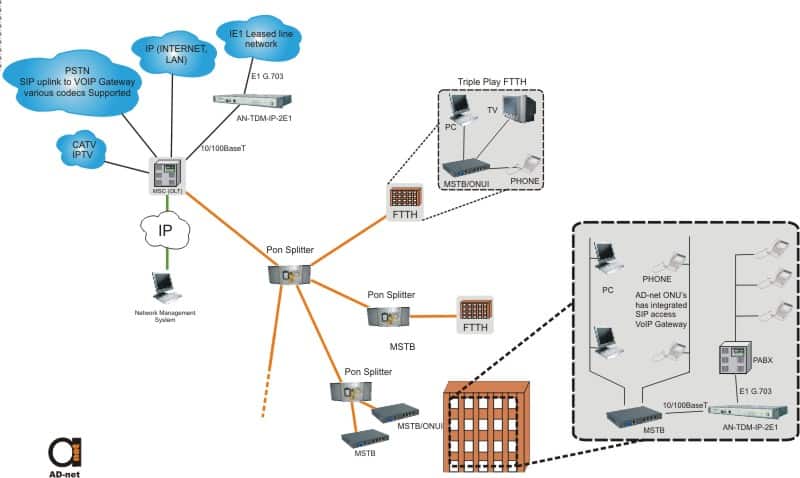

You can use AD-net's Micro Access 2 port IP ONU, or in case it is more large bulding - FTTB access ONU, it has 24 ports and connect at used side the AN-TDM-IP-2E1 - if you need up to 2 E1, or AN-TDM-IP-4E1 units, if you need up to 4E1 at same customer location, this will be most likely a business center or companies office.
Now, all you need to do, is connect at the OLT side same unit, and that's all - you had made the PRI, or regular E1 G.703 leased line over the FTTH / FTTB EPON network.
The benefits of such approach are as follows:
- No need invest and keep in stock expensive ONU with a E1 interface, and wait until the customer request comes up;
- No need invest in E1 ports at OLT side, which makes a price per leased line port over PON extremely high;
- Easy and fast to develop;
- E1 service can be made at existing ONU, without changing and ONU, just adding the TDM Over IP devices.
