Unmanaged series 14 slots chassis


	Rack mount chassis

	Unmanaged series 14 slots chassis

	The AN-CH05 provides 14 module slots for any combination of media converter. This is an universal chassis for any type of AD-net universal media converters - same module in AN-CH05 can be used as standalone!
	Request price

The AN-CH05 provides 14 module slots for any combination of media converter. Chassis can be used as concentrator for AD-Technology unmanaged converter series - for installing in 19' rack. You can take same module out and use as standalone module, and no need guess, how much you will need media converters for chassis, and how much will need for standalone - AD-net has solved this problem, by making our converters - pure universal.

Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. AN-CH05 rack-mount chassis eliminates the external power adapters for AN-UM series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple AN-UM series converters.

14 slots for media converter19 inch rack mount, 2U high
Internal back up power supply
Plug and play operation
Two power supply units in set;
Compact & easy to install;
State of art AD-net special design.

Diagnostic LED: Power LED

Power input: 100-240VAC 50~60Hz
Power consumption (full mode): 60W
Power consumption (empty mode): 10W
Operation temperature: 0~50 C
Storage temperature: -30~60 C
Dimension: 430mm(L) X 200mm(W) X 110mm(H)

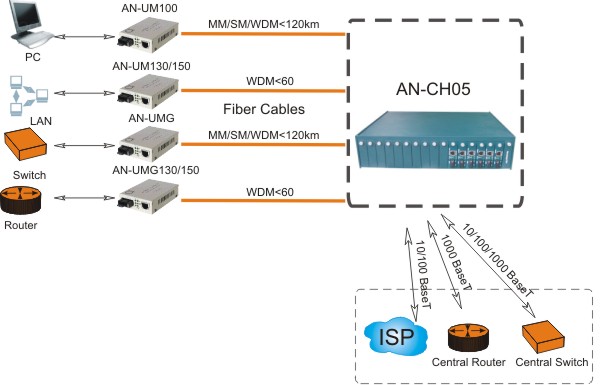

Application scenario:

Quick Setup Video:

AN-CH05/AA Request price	14 slots media converter rack, for fiber media converters, dual power supply included - AC+AC
AN-CH05/AD Request price	14 slots media converter rack, for fiber media converters, dual power supply included - AC+DC
AN-CH05/DD Request price	14 slots media converter rack, for fiber media converters, dual power supply included - DC+DC
