	AN-GSHDSL-ETH (Ethernet 10/100 Mbit/s) modem

	AN-GSHDSL-ETH modem uses G.SHDSL technology, complying with the ITU and ETSI standards, to extend the range of 10/100 Mbit/s Fast Ethernet interfaces.

AN-GSHDSL-ETH modems use TC PAM-16 line coding, equalization, adaptive filtering and echo cancellation to compensate for line impairments, bridge taps and mixed cabling. This provides immunity to background noise and enables transmission of multiple SHDSL lines on the same physical cable. AN-GSHDSL-ETH can be managed via VT-100 compatible Asynchronous Terminal Interface.
AN-GSHDSL-ETGH is equipped with an adaptive auto rate capability that identifies the maximum line rate supported by the copper loop.

Extends the range of 2Mbps data transmission up to 4Km
Up to 2.048 Mbit/s Ethernet speed for deliver LAN and Internet services to remote areas via existing twisted pair infrastructure
Supports all industry standards, and made especially to work with other third party vendors TDM equipment, what supports G.SHDSL standard
Monitoring, control and diagnostics of local and remote units are made by Network Management System
Perfomance monitoring available on console management
Robust, error free transmission algorithm used
Remote and local loopbacks for testing purposes
Industries probably most effiecient TC PAM-16 line coding for effective twisted pair usage and high distances

Line Interface	User Interface
Stadard：ITU_T G.991.2 G.994.1 Line: 2-Line Data Rate：64K~2048Kbps Line Coding: TC 16-PAM Approximate range：4Km (test in 0.4 mm , 2-wire) Connector：RJ11	E1： 2048Kbps,both 75 and 120Ω V.35 DTE： 64～2048Kbps 10/100Base-T： 10/100 Mbps
	other
	LWH：175×44×200 mm Power：-48VDC（80mA）or 220VAC（20mA）

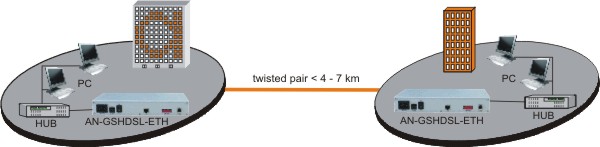

Application scenario:

AN-GSHDSL-ETH

Request price

Standalone G.SHDSL Modem with 10/100 Ethernet LAN interface, 220 V AC or 48 VDC for option
