AN-DV2000 series supports any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably. It is widely used in security monitoring and control, high way, electronical policy management, automation control, intelligent residential districts and so on.

It can work shortly after it is installed. You could select any date interface by set. It is connected easily and it can indicate power supply, link, video, also adjust video. There are three way installation kits available: desktop and rack mount;

It can be used in varios ways, for example:

• Intelligent transportation system;
• High speed way video monitoring and control system;
• Toll monitoring and control system;
• Close circuit TV industry monitoring and control;
• TV program switching channel transmit;
• High-fidelity video conference system;
• Security monitoring and control system.

• Completely digital fiber transmit platform;
• No need to configuration or any adjusting during the instalation, user friendly design;
• Based on self copyright IC;
• No interference between analog in adjusting channel, picture and range;
• 4 steps filtering;
• Completely digital, broadcast transmition efficiently managed by specific IC;
• High speed 10/100M Ethernet channel;
• Full speed asynchronous date channel;
• Flexible configuration on the same platform;
• Power supply, link, video by dynamic indication;
• Self-adapt in PAL, NTSC, SECAM standards;
• ASIC based design;
• transmit distance: up to 100KM
• Power supply:220v,-48v,+24, +12v,+5(optional), any specific on reuqest;
• SNMP management;
• Three installation types: wall method, rack in 19inches 1U, or plug in-card.

Video interface:

Input/output impedance: BNC 75 unbalance interface
Input/output voltage: peak 1 vpp, max 1.5 Vpp
Signal: PAL/NTSC/SECAM
Video bandwidth: 8MHZ
Video number wide: 8/10/12 bit
Differential gain: <1%
Differential phase: <0.6°
Slope: <0.5%
Luminance delay inequality: 10ns
Luminance gain gap: ±10%
Weighted noise ratio :66db

Date interface (can support 1~4 line asynchronous date RS-232/485/422)

Physical interface: industry standard terminal lead
Full duplex/half duplex
Interface type: RS-232/485/422 Manchester
RS232 rate: 0-115.2Kbps
RS-422/485 rate: 0-115.2Kbps
RS-422/485 transmit distance: 0-1200m
RS-422/485 agreement  support RS-485/422 agreement
Error rate: <10-9
Fiber interface
Physical interface: FC/PC/ST/PC
Fiber type: single/multi module
Transmit distance: multi module with 0-2km, single mode up to 100km

Audio interface: supports 1 line optional and bidirectional audio

Audio input/output: impedance 600 balance/unbalance interface industry standard terminal lead.
Audio input/output level :2Vp-p
Frequency response :10HZ-20KHZ
Audio channel width: 24 bit
Weighted noise ratio: 80db
Total Harmonic Distortion :0.1%

Ethernet interface
Physical interface: shielding RJ-45
support  IEEE 802.3/802.3u/802.1q VLAN
IEEE 802.3x full duplex and Back-Pressure half duplex flow control.

Working environment

Work temperature: -30~+75
storage temperature -45+85
input voltage :220-48V,+24VDC,+12DC,+5V optional
power: 5W (single terminal)
size : 482.6X 260X 25.4mm

Application scenario:

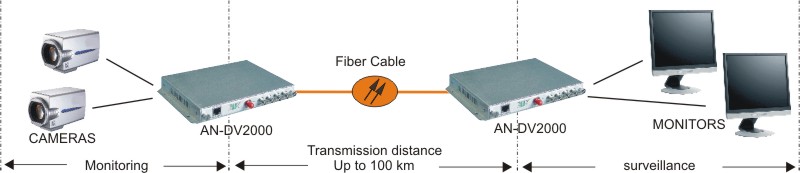

Simple application scenarion - 2 Video channel unit, at other side can be connected to DVR recorder or monitoring devices.

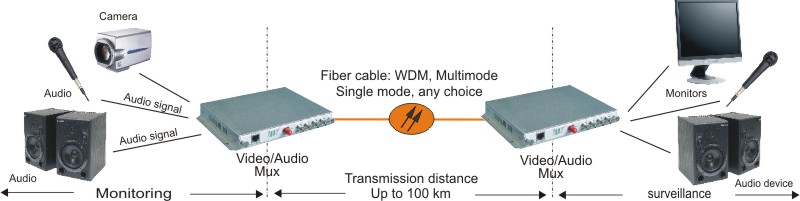

Application scenario - 1 Video + 2 Audio transmission over the the AD-net video/audio/data multiplexers

Click here to see more APPLICATION SCENARIOS...

Features Presentation:
