Fiber Optic Cable Connectors

Connectors for optic cable are very different from copper and coaxial due to the nature of the transmitted signal. The male part of the connection is called “connector”, while female – “receptacle” or “adapter”. For the connections with bandwidth over 10 Gbps two fibers are used – one for sending and one for receiving. If the bandwidth is over 40 Gbps, the multimode cable need to be used which might have up to 24 fibers. Connectors differ by the type of the optic cable. The single strand fiber uses simplex connector, two strand fiber – duplex connector, and more than two strands fiber requires array connector. Simplex connectors should maintain polarity of the signal in the optic cable. This is why it is important to color-code the connectors.



The list of connectors is below:



  • MPO array connector

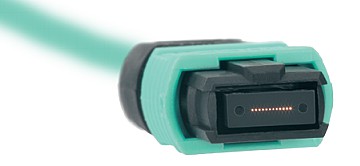

MPO_Connector

  • LC connector

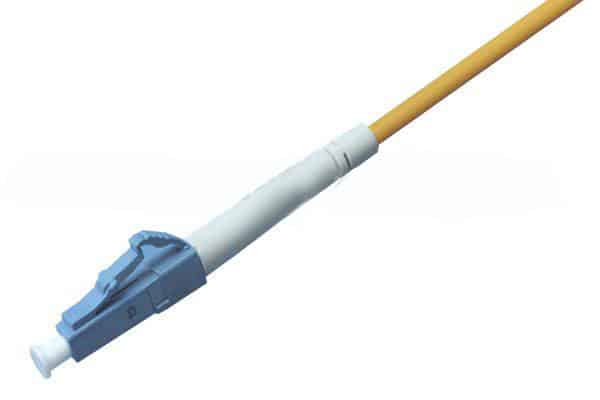

Fiber_Optic_Patch_Cord_LC_SM_3_0mm

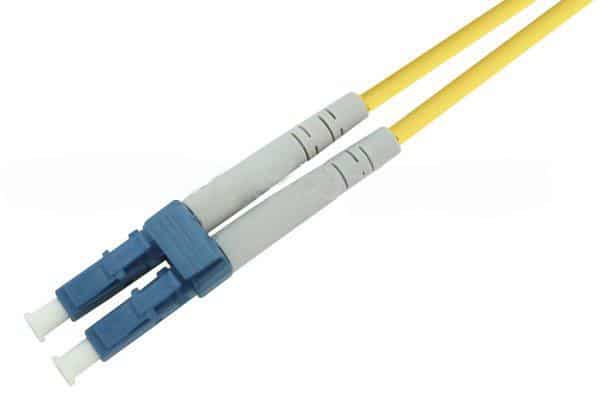

Fiber_Optic_Patch_Cord_LC_SM_Duplex_3_0mm

SC



  • Duplex SC fiber-optic connector

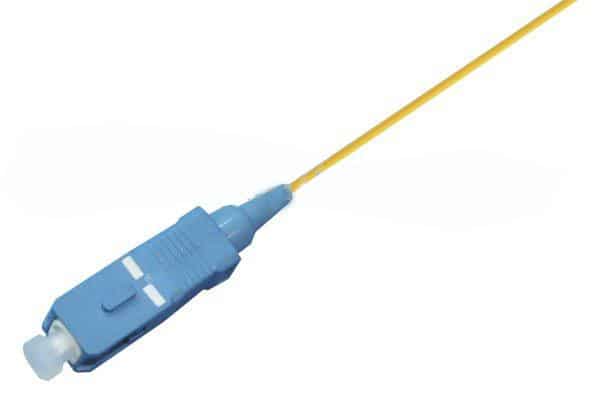

SC DX

  • ST fiber-optic connector, still used for example in video over fiber range of products

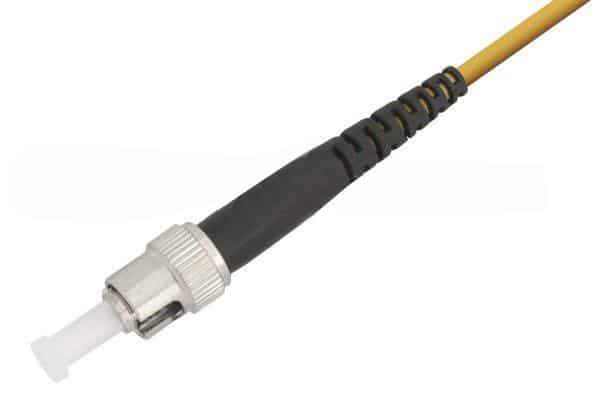

Fiber_Optic_Patch_Cord_ST_SM_3_0mm

  • Duplex ST fiber-optic connector

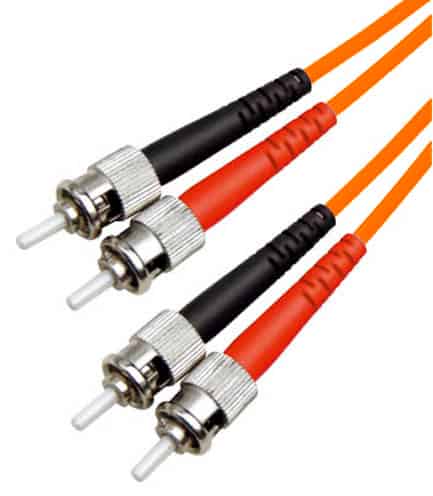

ST DX

  • FDDI fiber-optic connector

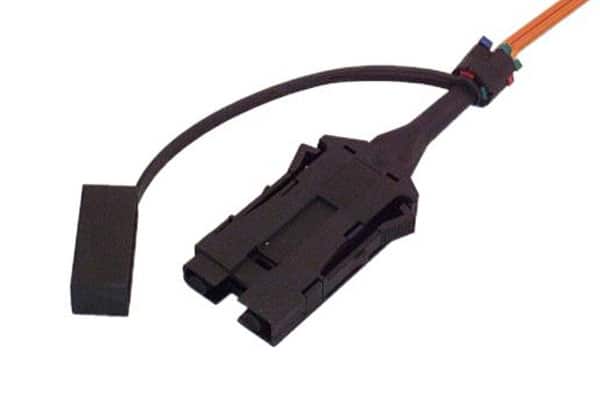

Fiber_Optic_Patch_Cord_FDDI

  • FC fiber-optic connector, can be seen in regular fiber optic media converters as well as in video over fiber

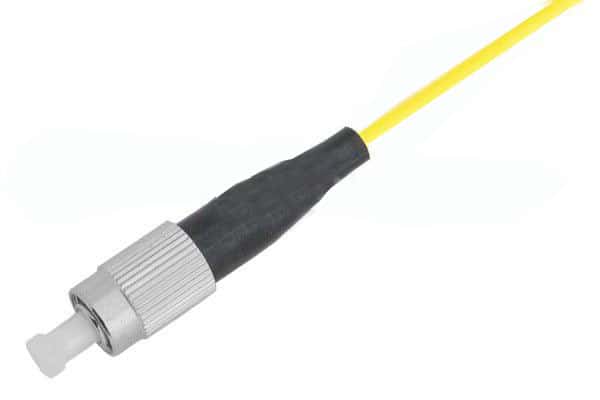

FC Fiber_Optic_Patch_Cord
